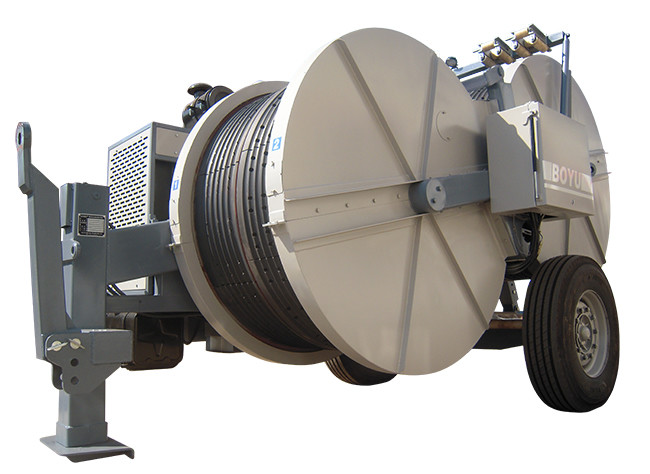

2x70kN 77kw 103hp Engine Overhead Line Stringing Equipment Hydraulic Tensioner

  • 1
  • 2

Brand Name : Boyu

Model Number : TY2x70-23

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Max intermittent pull : 2x70kN

Max continuous pull : 2x60kN

Diesel : 77kw(103hp)

Cooling system : water

Electrical system : 24v

Engine : Cummins

Overall dimension (length*width*height) : 4700*2300*2700mm

Type : Overhead Line Stringing Equipment Hydraulic Tensioner

Contact Now

Overhead Line Stringing Equipment 2x70kN Hydraulic Tensioner With 77kw(103hp) Diesel Engine



Model TY2x70

Characteristics

Bull-wheel diameter: 1700mm

Max conductor diameter: 45mm

Groove number: 2x6

Total weight: 9000kg

Overall dimension (length*width*height): 4700*2300*2700mm

Performance

Max intermittent pull: 2x70kN

Max continuous pull: 2x60kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x30kN/1x60kN

Max reverse pulling force: 2*60kN/1*120kN

Max reverse pulling speed: 3km/h

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor: German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German

Operating handle: German Rexroth

Engine

Diesel: 77kw(103hp)

Cooling system: water

Electrical system: 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Air brake system for the trailer

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter and speed counters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point



2x70kN 77kw 103hp Engine Overhead Line Stringing Equipment Hydraulic Tensioner

Other Models
Model

Max

intermittent tension

 Max continuous tension Speed at max tension Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
kN kN km/h km/h kN kN km/h kw(hp)   V
TY1X7.5   7.5   2.4
TY1X20   20   5
TY1X20II   20   4
TY1X20III   20 2.5 5 10 15

10kw

(3600rpm)

 Air
TY1X30D   30 2.5 5 15 20   18(25)   12
TY1X30   30 2.5 5 15 20   12(16)   12
TY1X40 45 40 2.5 5 20 35   77(103) Water 24
TY1X50 50 40 2.5 5 25 45 2.4 77(103) Water 24
TY1X60 70 60 2.5 5 35 50 5 77(103) Water 24
TY1X60III 70 60 2.5 5 30 60 2 77(103) Water 24
TY1X70 70 60 2.5 5 35 50 2.4 77(103) Water 24
TY1X70II 75 70 2.5 5   75 2 25(34) Water 24
TY1X80 100 80 2.5 5 40 70 3 97(131) Water 24
TY1X80III 1x90 1x80 2.5 5 1x50 1x70 5 77(103) Water 24
TY140IV 1x140 1x120 2.5 5 35 1x120 1.2 77(103) Water 24
TY2X35

2x40/

1x80

2x35/

1x70

 2.5 5

2x20/

1x40

2x30/

1x60

 5 77(103) Water 24
TY2X40

2x45/

1x90

2x40/

1x80

 2.5 5

2x20/

1x40

2x35/

1x70

 5 77(103) Water 24
TY2X50

2x55/

1x110

2x50/

1x100

 2.5 5

2x25/

1x50

2x45/

1x90

 5 77(103) Water 24
TY2X70

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2X70IV

2x70/

1x140

2x65/

1x130

 2.5 5

2x25/

1x50

2x60/

1x120

 5 77(103) Water 24
TY2X80

2x100/

1x200

2x80/

1x160

 2.5 5

2x40/

1x80

2x40/

1x80

 3 97(130) Water 24
TY2X90

2x100/

1x200

2x90/

1x180

 2.5 5

2x40/

1x80

2x80/

1x160

 2

130kw

(2500r/min)

 Water 24
TY4X30

4x30/

2x60

4x25/

2x50

 2.5 5

4x20/

2X40

4X20/

2x40

 1.25 77(103) Water 24
TY4X50

4x50/

2x200

4x40/

2x80

 2.5 5

4x20/

2x40

4x40/

2x80

 1.25 77(103) Water 24
