Hydraulic Tension Max Tension 2x100kN/1x200kN Overhead Line Stringing Equipment

Name: Hydraulic Tension Max Tension 2x100kN1x200kN Overhead Line Stringing Equipment
Brand: Boyu
Price: 1 USD

Buy cheap Hydraulic Tension Max Tension 2x100kN/1x200kN Overhead Line Stringing Equipment product

Brand Name : Boyu

Model Number : TY2x80-30

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Type : Hydraulic Tension Machine For Overhead Line

Max tension : 2x100kN/1x200kN

Rated tension : 2x80kN/1x160kN

Bull-wheel diameter : 1850mm

Overall dimension (length*width*height) : 5520*2280*2850mm

Engine : Cummins

Hydraulic pump : German Rexroth/Dnish Danfoss

Main motor : German Rexroth/French Leduc

Contact Now

Stringing Equipment Cummins Engine Hydraulic Tension Machine For Overhead Line

Performance

Max tension: 2x100kN/1x200kN
Rated tension: 2x80kN/1x160kN
Speed at max tension: 2.5km/h
Max feeding speed: 5km/h
Pull at max speed: 2x40kN/1x80kN
Max reverse pulling force: 2x40kN/1x80kN
Max reverse pulling speed: 3km/h

Engine

Diesel: 97kw(130hp)
Cooling system: water
Electrical system: 24V

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Characteristics

Bull-wheel diameter: 1850mm
Groove number: 2x6
Max conductor diameter: 48.75mm
Total weight: 10000kg
Overall dimension (length*width*height):5520*2280*2850mm

Main configuration

Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor: German Rexroth/French Leduc
Speed reducer: German Rexroth
Hydraulic meter: German
Operating handle: German Rexroth

Additional Devices

Lighting system for the trailer
2 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter
Air brake system for the trailer

Configuration

2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Grounding connection point

Hydraulic Tension Max Tension 2x100kN/1x200kN Overhead Line Stringing Equipment

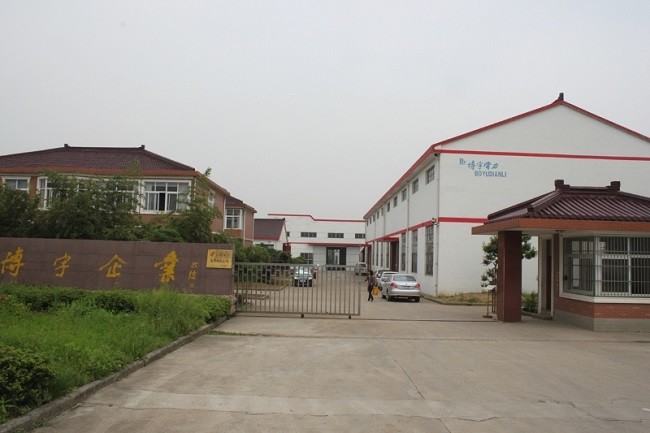

Company Profile

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools 2: Nonmetallic galvanized the production equipment (Achieved high-tech products) 3: Numerical control machine 4: Low voltage no power-arc furnace compensation system
History	Established in 1994, Yixing city Boyu power machinery Co., LTD
	In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
	In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
	In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
	In 2009 reworded significant achievement in Wuxi city
	In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
	In 2010 achieved the national ministry of science and technology innovation in science and technology project.
	To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
