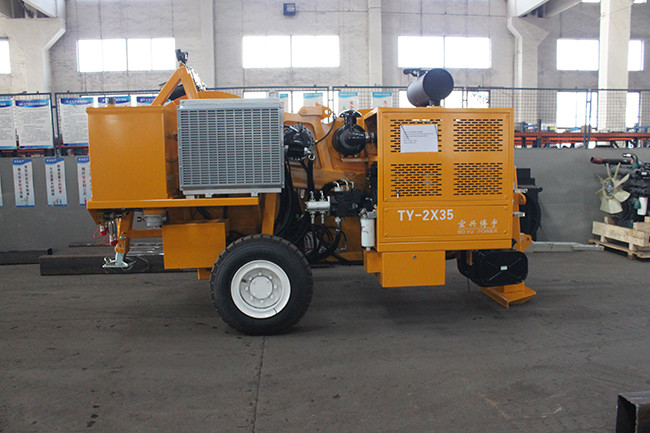

Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner

  • 1
  • 2

Brand Name : Boyu

Model Number : TY2x35-1

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Type : Overhead Line Stringing Equipment Hydraulic Tensioner

Engine : Cummins

Hydraulic pump : German Rexroth/Dnish Danfoss

Max intermittent pull : 2x40kN

Max continuous pull : 2x35kN

Pull at max speed : 2x20kN

Overall dimension (length*width*height) : 4300*2250*2700mm

Max conductor diameter : 40mm

Contact Now

TY2x35 Overhead Line Stringing Equipment Hydraulic Tensioner With Water Cooling System



Characteristics

Bull-wheel diameter

1300mm


Max conductor diameter

40mm


Groove number

2x5


Total weight

4500kg


Overall dimension (length*width*height)

4300*2250*2700mm

Performance

Max intermittent pull

2x40kN


Max continuous pull

2x35kN


Speed at max pull

2.5km/h


Max speed

5km/h


Pull at max speed

2x20kN


Max reverse pulling force

2x30kN


Max reverse pulling speed

5km/h

Main configuration

Engine

Cummins


Hydraulic pump

German Rexroth/Dnish Danfoss


Main motor

German Rexroth/French Leduc


Speed reducer

German Rexroth / Italy Brevini


Hydraulic meter

German



Operating handle

German Rexroth

Engine

Diesel

77kw(103hp)


Cooling system

water


Electrical system

24V



Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

  • Lighting system for the trailer
  • Air brake system for the trailer (extra charge)
  • 2 hydraulic conductor clamps for drum change operations (extra charge)
  • Swivel guide rope roller

Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner



Yixing Boyu Electric Power Machinery Co., Ltd was established in 1993. It is a high-tech enterprise in China. It is a professional company engaged in the research and development, production and sales of hydraulic pullers, tensioners, conductors and other transmission line threading equipment and tools. Pulleys, anti-torsion galvanized steel wire ropes and provide customers with accessories and technical services. After years of hard work, Boyu has developed into one of China's largest manufacturers of stringing equipment and tools, and currently offers more than 200 products.



Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner



At present our annual output value reaches more than thirty million USD, we provide more than 1000 sets of equipment for customers in the Power System, our products are very popular in China, and our main customers include STATE GRID, CHINA POWER, EETC etc. We also develop business in the International market more than 10 years and more than 50 countries.
