30kN Reel Carrier Trailer Transmission Line Stringing Tools For Cable Drum Hauling Reel

Name: 30kN Reel Carrier Trailer Transmission Line Stringing Tools For Cable Drum Hauling Reel
Brand: BOYU
Price: 1 USD

Buy cheap 30kN Reel Carrier Trailer Transmission Line Stringing Tools For Cable Drum Hauling Reel product

Brand Name : BOYU

Model Number : TYDLG-3T

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 sets/month

Delivery Time : 30 days

Packaging Details : Carton

Max Capacity : 30kN

Reel Dimensions(Diameter) : 2400mm

Reel Dimensions(Width) : 1250mm

Reel Dimensions(Axel diameter) : 80mm

Overall dimensions : 3800*2300*2200mm

Weight : 900kg

Type : Reel Carrier Trailer

OEM services : YES

Contact Now

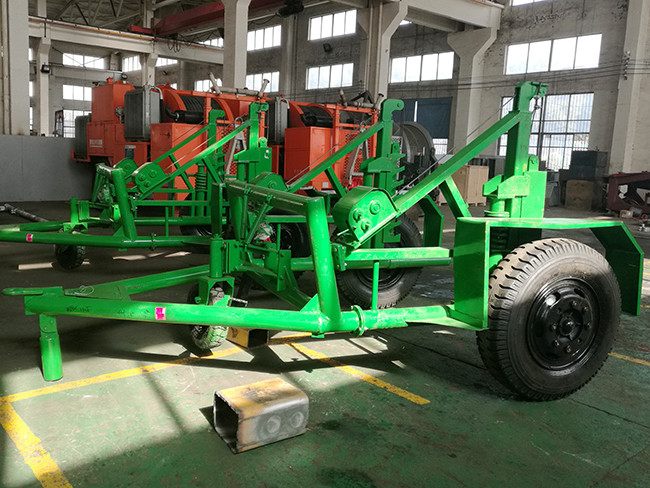

Transmission Line Stringing Tools Reel Carrier Trailer For Cable Drum Hauling Reel

The reel bracket is made of welded steel with a protective coating. Two hydraulic jacks are used to lift the reel. Special models with different characteristics can be designed as needed.

Performance

Model		TYDLG-3T	TYDLG-5T	TYDLG-8T	TYDLG-10T
Max Capacity (kN)		30	50	80	100
Reel Dimensions (mm)	Diameter	2400	2800	3400	3600
	Width	1250	1450	1800	2000
	Axel Diameter	80	100	120	150
Overall dimensions (mm)		380023002200	400026002500	430030003000	460038002900
Weight (kg)		900	1500	2300	3100
