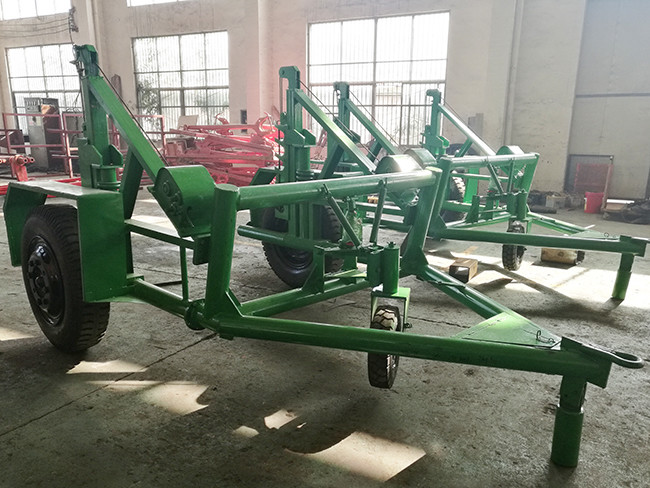

Green Color Stringing Equipment Reel Carrier Trailer Max Capacity 50kN

Yixing Boyu Electric Power Machinery Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Green Color Stringing Equipment Reel Carrier Trailer Max Capacity 50kN

Brand Name : BOYU

Model Number : TYDLG-5T

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 sets/month

Delivery Time : 30 days

Packaging Details : Carton

Max Capacity : 50kN

Reel Dimensions(Diameter) : 2800mm

Reel Dimensions(Width) : 1450mm

Reel Dimensions(Axel diameter) : 100mm

Overall dimensions : 4000*2600*2500mm

Weight : 1500kg

OEM services : YES

Type : Reel Carrier Trailer

Contact Now



Transmission Line Stringing Tools Reel Carrier Trailer Max Capacity 50kN



Performance

Model TYDLG-3T TYDLG-5T TYDLG-8T TYDLG-10T

Max Capacity

(kN)

30 50 80 100

Reel Dimensions

(mm)

Diameter 2400 2800 3400 3600
Width 1250 1450 1800 2000
Axel Diameter 80 100 120 150

Overall dimensions

(mm)

3800*2300*2200 4000*2600*2500

4300*3000*3000

4600*3800*2900

Weight

(kg)

900 1500 2300 3100
  • The reel bracket is made of welded steel with a protective coating.
  • Two hydraulic jacks are used to lift the reel.
  • Special models with different characteristics can be designed as needed.

Green Color Stringing Equipment Reel Carrier Trailer Max Capacity 50kN
