Name: 15 Groove Numbers Hydraulic Cable Tensioner Corresponding Speed 25kmH
Brand: BOYU
Price: 1 USD

Brand Name : BOYU

Model Number : TY1x120III

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Type : Hydraulic Cable Tensioner

Maximum continuous tension : 120KN

Main pump : Hydraulic control bidirectional variable plunger pump(Germany Rexroth)

Hydraulic motor : Two-way Quantitative Plunger Piston Motor (Germany Rexroth)

Speed reducer : planet Gear Decelerator (Italy Bonfiglioli)

Engine : Cummins 4BTA3.9-C130

Contact Now

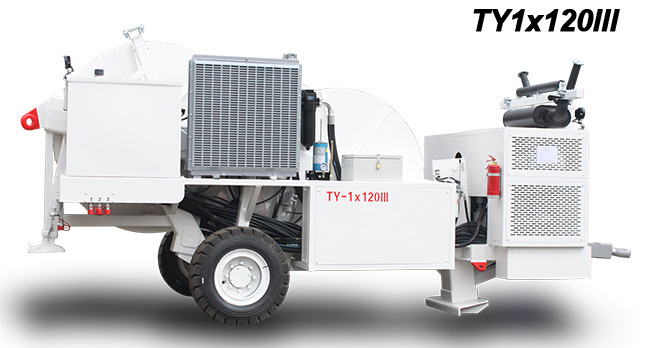

Power Line Stringing Equipment Hydraulic Cable Tensioner 15 Groove Numbers Corresponding Speed 2.5km/h

Main technical performance

Main technical performance	Maximum intermittent tension: 130KN
	Maximum continuous tension: 120KN
	Corresponding speed: 2.5km/h
	Maximum payoff speed: 5km/h
	Corresponding tension: 60KN
	Maximum back pulling force: 90kn
	Maximum back pulling speed: 3km/h
	Diameter of tensile force wheel: 1500mm
	Groove numbers: 15
	Maximum applicable diameter of wire: 40mm
	Transport dimensions: 530023002600mm
	Total weight: 8100kg

Engine	Model: Cummins 4BTA3.9-C130
	Rated power: 97kw/2500rpm

Main pump	Type: Hydraulic control bidirectional variable plunger pump(Germany Rexroth)
	Model: A4VG71EP4/32R

Hydraulic motor	Type: Two-way Quantitative Plunger Piston Motor (Germany Rexroth)
	Model: A2FM180/61W

Speed reducer	Type: planet Gear Decelerator (Italy Bonfiglioli)
	Model: 310 L2
	Reduction ratio: 28
	Brake opening pressure: 1.8MPA

Electrical System	System voltage: 24V
	Storage battery: 6-QA-110(2 sets)
	Diesel engine starting: 24V electric starting

15 Groove Numbers Hydraulic Cable Tensioner Corresponding Speed 2.5km/H
