Hydraulic Compressor Transmission Line Stringing Tools For Die Or Hydraulic Pump

Name: Hydraulic Compressor Transmission Line Stringing Tools For Die Or Hydraulic Pump
Brand: Boyu
Price: 1 USD

Buy cheap Hydraulic Compressor Transmission Line Stringing Tools For Die Or Hydraulic Pump product

Brand Name : Boyu

Model Number : TYQY

Certification : ISO9001

Place of Origin : China (Mainland)

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000 Sets/Month

Delivery Time : 15~30 days

Packaging Details : Wooden case

Type : Hydraulic Compressor

Max compression force : 2000kN

Rated pressure : 94kN

Conductor size : <1440mm2

Max stroke : 25mm

Weight : 85kg

Contact Now

Transmission Line Stringing Tools Hydraulic Compressor For Die or Hydraulic Pump

The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics: excellent weight/power ratio; very short pressing cycle (all the presses have an hydraulically-driven piston release); each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press.

Hydraulic Compressor Transmission Line Stringing Tools For Die Or Hydraulic Pump

For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.

Model	Max compression force kN	Rated pressure kN	Conductor size mm2	Max stroke mm	Weight kg
QY-35	350	70	≤240	25	12
QY-65	650	94	≤500	25	25
QY-125	1250	94	≤720	25	40
QY-200	2000	94	≤1440	25	85

Hydraulic Compressor Transmission Line Stringing Tools For Die Or Hydraulic Pump

For Die

Model	Compressor model	Aluminum Dies mm	Steel Dies	Copper Dies mm2
QYD-35	QY-35	16/18/20/22/24/ 26/30/32/34/36		16~500
QYD-65	QY-65	26/28/30/32/34/ 36/38/40/45/50	12/14/16/18/ 20/22/24/26	16~800
QYD-125	QY-125	26/28/30/32/34/36/ 38/40/45/50/52/55/60	12/14/16/18/ 20/22/24/26	16~800
QYD-200	QY-200	26/28/30/32/34/36/38/ 40/45/50/52/55/60/65/70/75/80	12/14/16/18/20/ 22/24/26/28/30/32	16~800

Hydraulic Compressor Transmission Line Stringing Tools For Die Or Hydraulic Pump

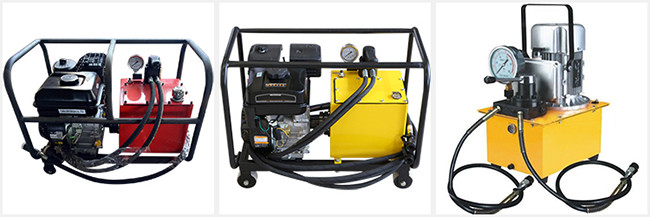

For Hydraulic pump

Model	Engine	Max compression force Mpa	Flow L/min	Tank capacity L	Power hp	Weight kg	Dimension mm
YB-100-G1	Gasoline	100	1.6	8	4	85	600420510
YB-100-G2	Gasoline	100	1.6	8	5.5	80	600420510
YB-100-D	Diesel	100	1.6	8	4	100	600430520
YB-100-M	Motor	100	1.6	8	1.5	90	750400580
